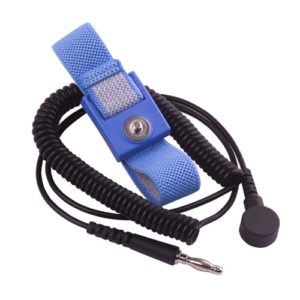

Transforming Technologies Wrist Strap Set, Black, Blue Fabric Band

$7.72
Add to wishlist
Add to compare
SKU: WB1637
California prop 65
Description

Description

  • Key performance benefit: Provides reliable ESD grounding for personnel, protecting sensitive electronics and reducing the risk of static discharge.

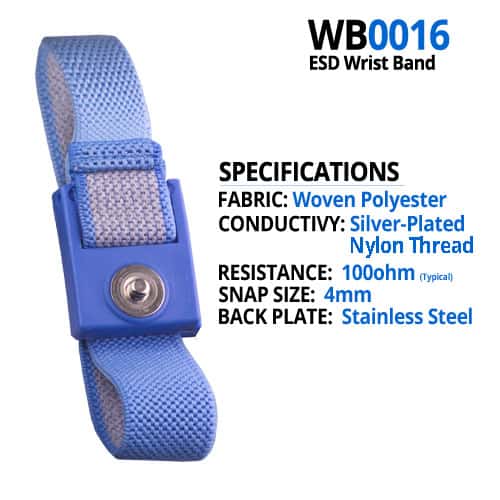

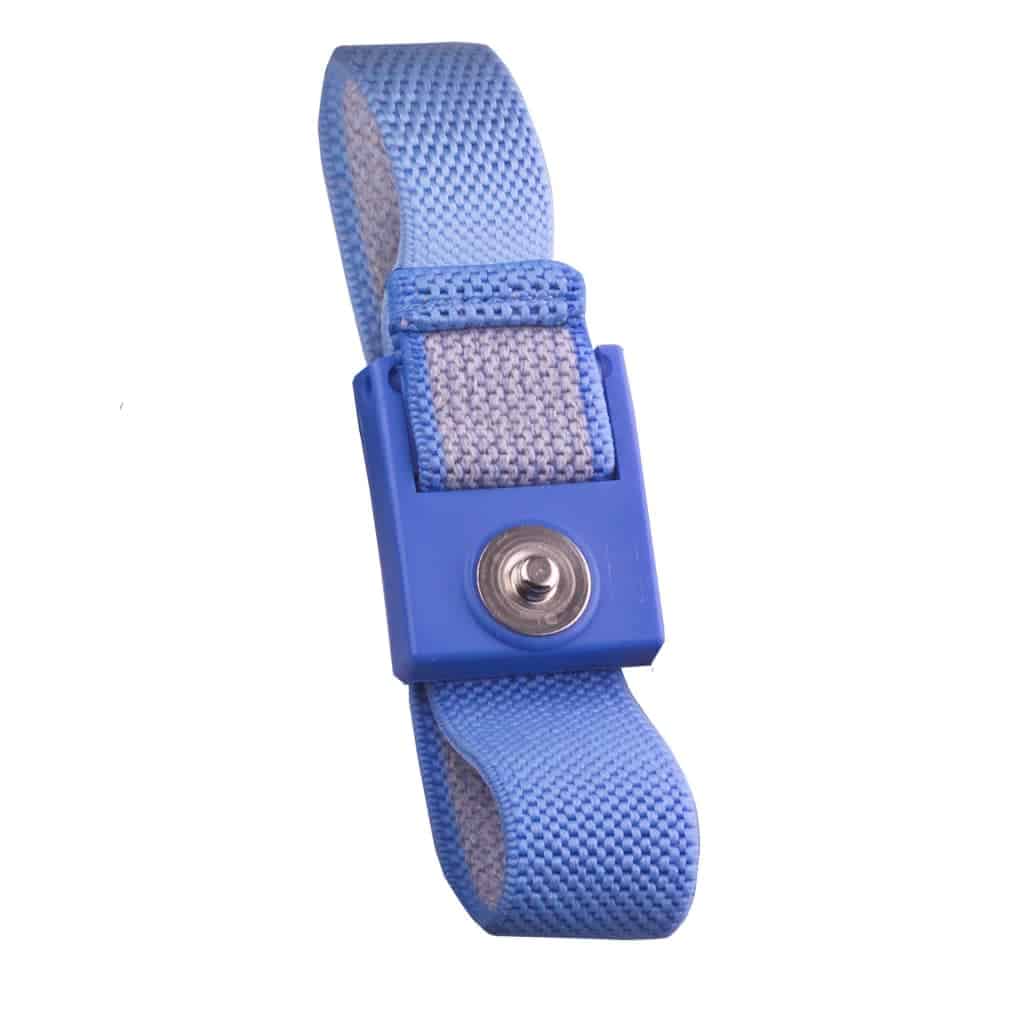

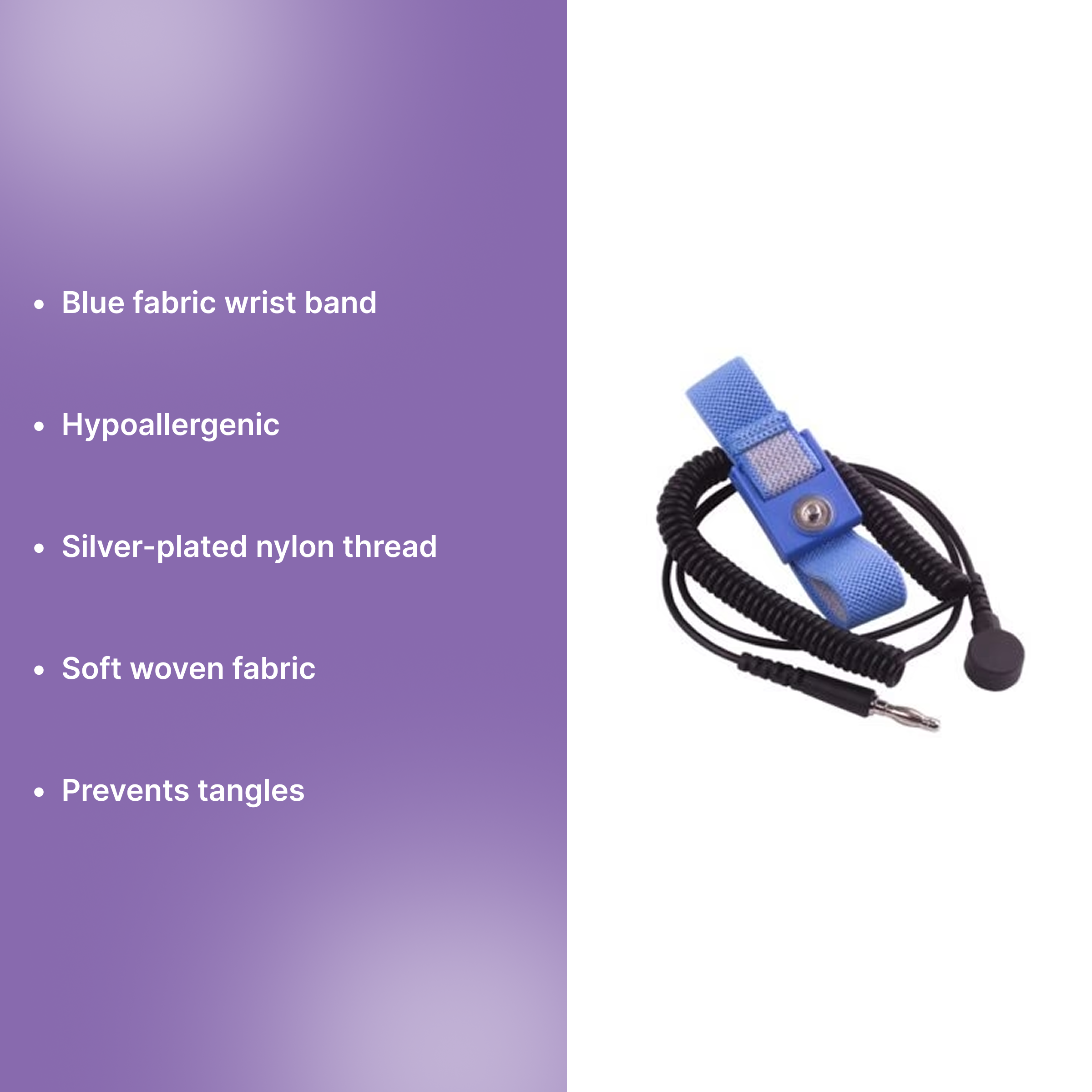

  • Material & construction: Soft blue woven fabric wrist band with hypoallergenic silver-plated nylon thread for conductivity; coil cord insulated with 2.5mm polyurethane.
  • Risk reduction/compliance benefit: Ensures consistent grounding to minimize static buildup and reduce the risk of ESD damage in controlled environments.
  • Protection level: Maximum band resistance of 160 ohms; compatible with standard ESD grounding systems via 4mm snap connection.

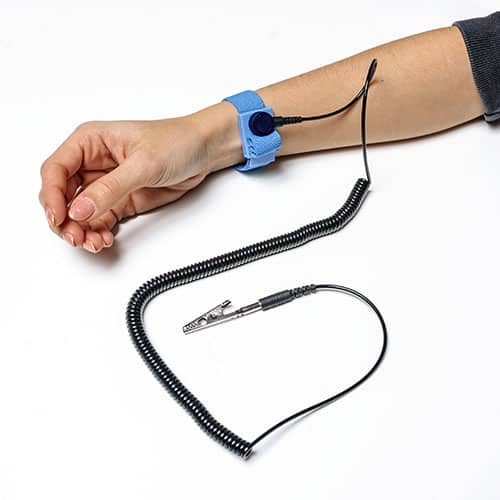

  • Comfort & usability: Soft fabric and a 360° curved buckle allow skin to breathe; an elastic coil cord prevents tangling and enhances mobility.
  • Safety & compliance assurance: Meets or exceeds ANSI ESD-S20.20 and ESDA Standard 1.1-2006.

Recommended For

  • Electronics assembly and repair
  • Static-sensitive component handling
  • Quality control and inspection areas
  • Cleanroom-compatible operations (with proper ESD flooring)
  • Workstations requiring personal grounding
  • Mobile operator environments

Primary Industries

  • Electronics manufacturing
  • Semiconductor
  • Aerospace
  • Medical device manufacturing

Standards and Certifications

  • ANSI ESD-S20.20
  • ESDA Standard 1.1-2006
SHOW MORE

Properties

Material Blue woven fabric band, silver-plated nylon thread, polyurethane insulated coil cord
Coating / Finish Not applicable
Color Blue wrist band, black coil cord
Fit / Size Range One-size-fits-all with 4mm snap
Band Resistance Maximum 160 ohms
Reviews

FAQs

When should I use a wrist strap instead of a heel grounder?

Wrist straps are ideal for stationary tasks that require precise handling of static-sensitive electronics, such as assembly, inspection, or repair. Unlike heel grounders, which support mobile operators, wrist straps maintain a constant path to the ground while the user is seated or standing in one spot, reducing the risk of ESD damage.

Can this wrist strap be used in cleanroom environments?

Yes, this wrist strap is suitable for cleanroom-compatible operations when used with proper ESD flooring. The soft fabric and hypoallergenic materials reduce the risk of contamination, while the conductive silver-plated nylon ensures reliable grounding. Always verify that the cleanroom protocol allows wrist straps and that the grounding system is properly installed.

How does the 6-foot coil cord affect usability?

The 6-foot coil cord provides mobility while maintaining reliable grounding. Its elasticity prevents tangling, allowing users to reach equipment without detaching from the ESD system. This length balances freedom of movement with effective electrical connection, making it suitable for workstations, repair benches, and mobile operator scenarios within controlled environments.

Is this wrist strap compatible with all ESD grounding systems?

The wrist strap uses a standard 4mm snap connection and is compatible with most ESD grounding systems. Its maximum band resistance of 160 ohms ensures safe dissipation of static electricity while meeting ANSI ESD-S20.20 and ESDA Standard 1.1-2006. Ensure the grounding system is properly installed and regularly tested for consistent performance.

How should I maintain and store the wrist strap for long-term performance?

Store the wrist strap in a clean, dry area away from extreme heat or moisture. Regularly inspect the fabric band and coil cord for wear or fraying. Avoid overstretching the cord or exposing it to chemicals. Proper care ensures consistent grounding, prevents static buildup, and extends the life of both the band and the conductive silver-plated threads.
