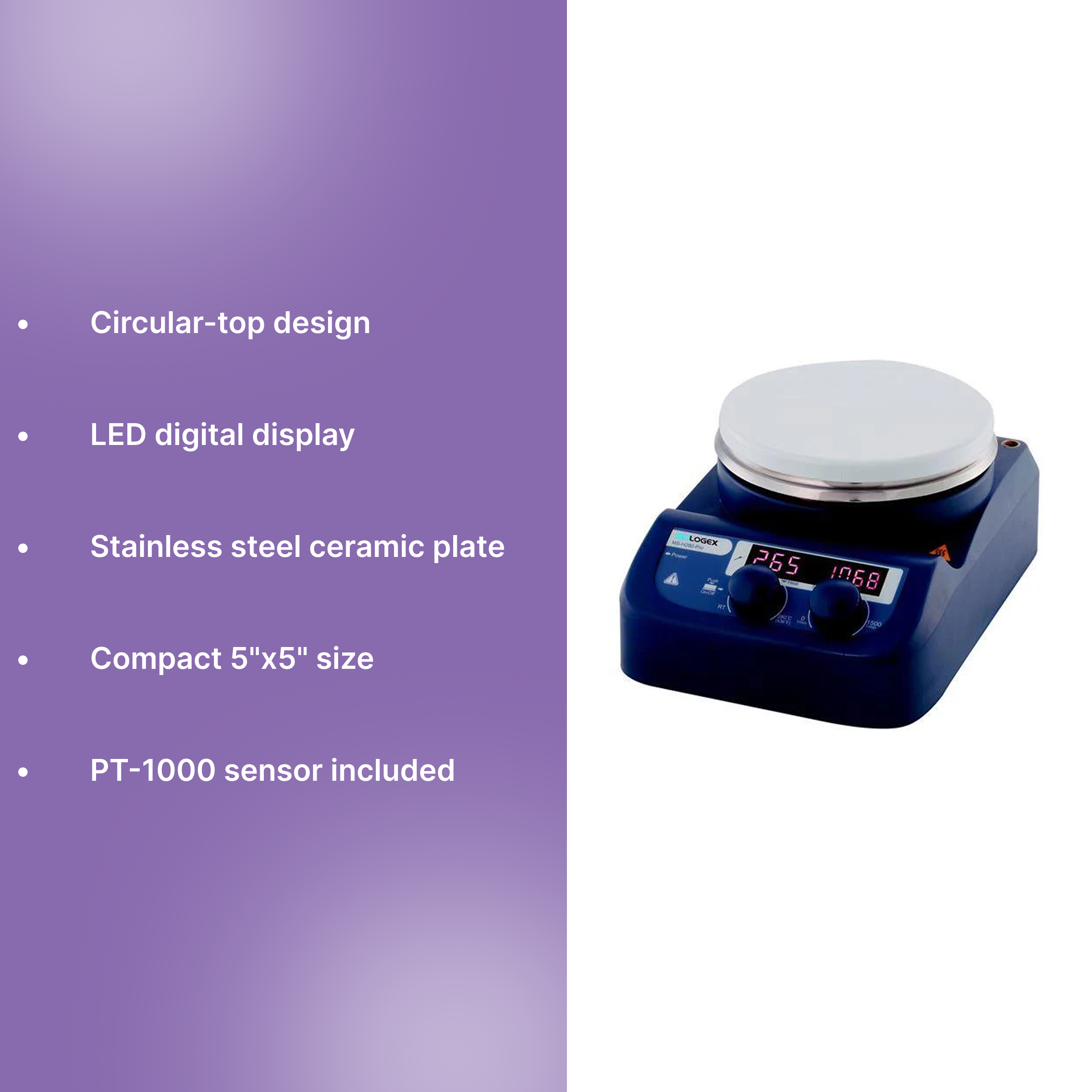

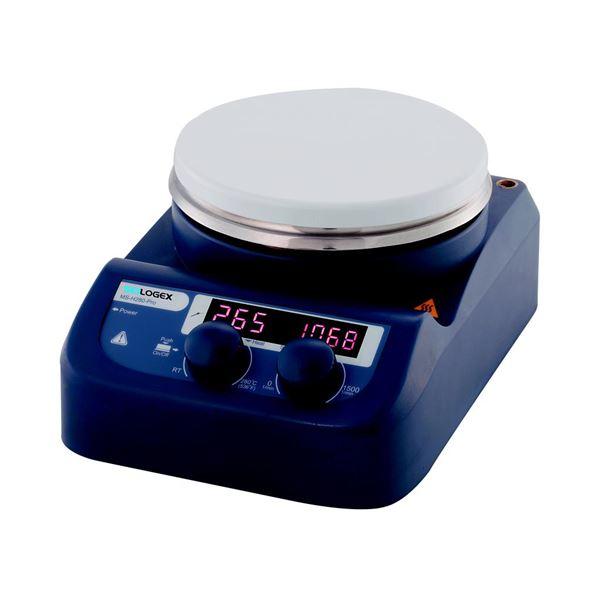

Hotplate Stirrer SCILOGEX MS-H280-Pro Circular-top LED Digital(280C Max.) 5"x5" - 861431019999

$416.00
Add to wishlist
Add to compare
SKU: H3480
California prop 65
Description

Description

  • Key performance benefit: The SCILOGEX MS-H280-Pro Hotplate Stirrer offers precise control with a maximum temperature of 280°C and a stirring speed up to 1500 rpm. This ensures efficient mixing and heating for a variety of laboratory applications, enhancing experimental accuracy and productivity.
  • Material & construction: Constructed with a stainless steel work plate coated with ceramic, this unit provides excellent chemical resistance and easy cleaning. The durable build ensures longevity and consistent performance in demanding lab environments.
  • Risk reduction/compliance benefit: The unit features an external temperature control option via the included PT-1000 sensor, providing ±0.5 °C accuracy. This enhances safety and compliance with stringent laboratory standards by maintaining precise temperature control.
  • Protection level: With an IP21 protection class, the hotplate stirrer is safeguarded against solid objects over 12mm and vertically dripping water, ensuring reliable operation in typical laboratory conditions.
  • Comfort & usability: The LED display offers clear visibility of temperature and speed settings, while the electronic speed control maintains constant speed despite load changes. The compact design optimizes bench space, making it user-friendly and efficient.
  • Safety & compliance assurance: The SCILOGEX MS-H280-Pro is cTUVus-approved to UL and CSA standards, ensuring compliance with North American safety regulations. An automatic "HOT" warning flashes when the plate exceeds 50°C, even if the unit is off, enhancing user safety.

Recommended For

  • Small volume laboratory tasks
  • Chemical synthesis experiments
  • Educational laboratory demonstrations
  • Routine analytical procedures
  • Pharmaceutical research
  • Biochemical assays

Primary Industries

  • Chemical manufacturing
  • Pharmaceutical development
  • Academic research laboratories
  • Biotechnology firms
  • Environmental testing labs

Standards and Certifications

  • cTUVus approved for UL and CSA
SHOW MORE

Properties

Work plate dimension Ø135mm (5 inch)
Work plate material Stainless steel with ceramic coating
Motor type Brushless DC motor
Motor input power 5W
Motor output power 3W
Power 515W
Heating output 500W
Voltage 100-120V 60Hz
Stirring positions 1
Max. stirring quantity 3L
Max. magnetic bar length 50mm
Speed range 200-1500rpm
Speed display LED
Temperature display LED
Speed display resolution ±1rpm
Heating temperature range Room Temp.-280°C, increment 1°C
Temperature control accuracy ±1°C (<100°C), ±1% (>100°C)
Overheating protection 320°C
Temperature display accuracy ±1°C
External temperature sensor PT1000 (accuracy ±0.5°C)
"Hot" warning 50°C
Protection class IP21
Dimension [WxDxH] 150×260×80mm
Weight 1.8kg
Permissible ambient temperature and humidity 5-40°C, 80%RH
Reviews

FAQs

How do I install the SCILOGEX MS-H280-Pro Hotplate Stirrer?

The installation of the SCILOGEX MS-H280-Pro is straightforward. Place the unit on a stable, flat surface with adequate ventilation. Connect the power cord to a suitable power outlet. Ensure the PT-1000 sensor is properly connected if external temperature control is required. Follow the user manual for detailed setup instructions, ensuring all safety guidelines are adhered to during installation.

What maintenance is required for this hotplate stirrer?

Regular maintenance includes cleaning the ceramic-coated stainless steel plate with a soft cloth and mild detergent to prevent chemical residue buildup. Check the power cord and connections for wear and tear. Regularly inspect the PT-1000 sensor for any signs of damage. Always ensure the unit is turned off and unplugged before performing maintenance.

Is the SCILOGEX MS-H280-Pro compatible with all laboratory glassware?

The hotplate stirrer is compatible with a wide range of laboratory glassware, but it is most efficient with vessels that match the 5"x5" plate size for optimal heat transfer. Ensure the glassware used can withstand the maximum temperature of 280°C. For specific compatibility, refer to the glassware manufacturer's guidelines.

What accessories are included with the SCILOGEX MS-H280-Pro?

The unit comes with a free 50mm L x 5mm Dia: magnetic stir bar and a PT-1000 sensor for medium temperature control. Additional accessory reaction blocks for flasks and vessels are available for purchase separately, enhancing the unit's versatility for various laboratory applications.

What is the warranty period for the SCILOGEX MS-H280-Pro?

The SCILOGEX MS-H280-Pro Hotplate Stirrer comes with a 2-year warranty. This warranty covers defects in materials and workmanship under normal use conditions. For warranty claims, contact the supplier or manufacturer with proof of purchase and a detailed description of the issue.
