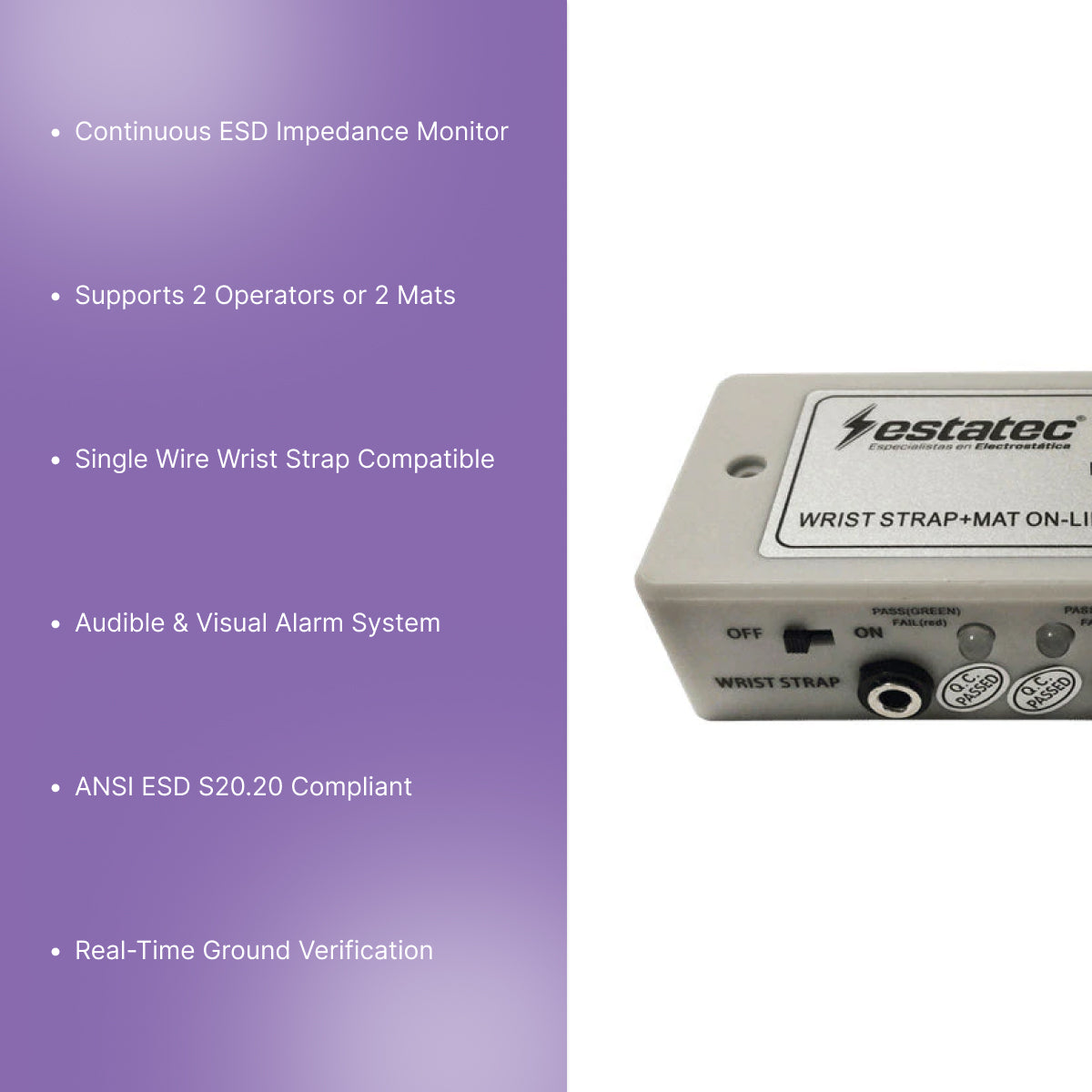

Impedance Monitor, 2 Operators Or 2 Mats Or 1 Operator + 1 Mat (For Single Wire Wrist Straps) - EMN-PX1688

$74.99 $74.67
Add to wishlist
Add to compare
SKU: EMN-PX1688
California prop 65
Description

Description

Description

  • Key Performance Benefit: The EMN-PX1688 Impedance Monitor provides continuous real-time verification of grounding integrity for operators and ESD mats, helping protect static-sensitive components from electrostatic discharge damage.
  • Material & Construction: Designed for use with single-wire wrist straps, this compact monitoring unit connects to wrist straps and/or ESD work surfaces to continuously measure impedance to ground.
  • Risk Reduction/Compliance Benefit: By continuously monitoring grounding status rather than relying on periodic testing, the unit reduces the risk of unnoticed grounding failures that could lead to costly ESD damage.
  • Protection Level: Provides audible and visual alarms when a grounding fault is detected, supporting compliance with ANSI ESD S20.20 standards for static control programs.
  • Comfort & Usability: Flexible configuration allows monitoring of two operators, two mats, or one operator and one mat, making it adaptable to various workstation setups.
  • Safety & Compliance Assurance: Designed for use in controlled ESD environments and compatible with most banana plug single-wire wrist straps.

Recommended For

  • Electronics assembly workstations
  • Static-sensitive manufacturing environments
  • ESD-controlled repair benches
  • Cleanroom facilities
  • Quality control and compliance monitoring

Product Details

  • Model: EMN-PX1688
  • Monitoring Capacity: 2 operators, 2 mats, or 1 operator + 1 mat
  • Compatibility: Single-wire wrist straps (banana plug style)
  • Alarm Type: Audible and visual indicators
  • Function: Continuous impedance monitoring
  • Compliance: ANSI ESD S20.20 compatible

Primary Industries

  • Electronics Manufacturing
  • Semiconductor Assembly
  • Aerospace & Defense Electronics
  • Cleanroom Operations
  • Technical Repair & Maintenance

Standards and Certifications

  • Supports ANSI ESD S20.20 compliance
  • Designed for ESD control program integration
SHOW MORE
Reviews

FAQs

How does continuous monitoring improve ESD control compared to periodic testing?

Continuous monitoring verifies grounding in real time, helping detect faults immediately rather than relying on once-per-shift checks. This reduces the window of exposure to static discharge risks and supports stronger quality control in environments where sensitive components could be damaged by unnoticed grounding failures.

What should be considered when configuring multiple operators or mats?

Workstation layout, grounding points, and workflow patterns should be evaluated before setup. Ensuring proper cable routing and secure connections helps prevent nuisance alarms while maintaining accurate monitoring. Planning configuration in advance supports smooth integration into existing ESD control procedures.

How do audible and visual alarms support compliance programs?

Immediate alerts allow operators and supervisors to respond quickly when a grounding issue occurs. This helps reinforce accountability within ESD control programs and provides documented evidence that monitoring systems are actively supporting compliance with established static control standards.

In what environments is real-time impedance verification most critical?

Real-time monitoring is especially important in electronics assembly, semiconductor handling, and high-value repair operations where even small electrostatic events can cause latent defects. Continuous verification helps maintain product reliability and reduces costly rework, scrap, or field failures.

What maintenance practices help ensure reliable monitor performance?

Regular inspection of cables, connectors, and grounding points helps maintain accurate readings. Periodic functional checks of alarm indicators and connection integrity support consistent operation, ensuring the monitoring system continues to provide dependable protection within controlled ESD environments.
