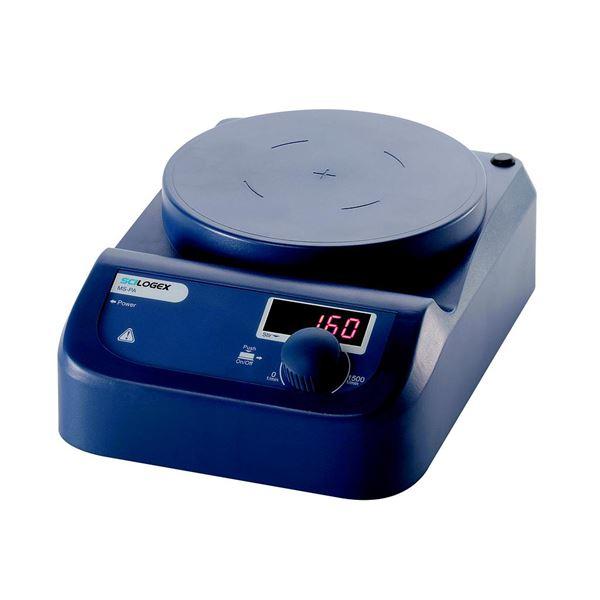

SCI-PA Circular-top LED Digital Magnetic Stirrer - 861521039999

$237.00
Add to wishlist
Add to compare
SKU: S8827
California prop 65
Description

Description

  • Key performance benefit: The SCILOGEX SCI-PA Circular-top LED Digital Magnetic Stirrer delivers precise stirring capabilities with a speed range of 100 to 1500 rpm. This ensures consistent mixing across a variety of laboratory applications, accommodating up to 3 liters of H2O and making it ideal for small- to medium-sized tasks.
  • Material & construction: Constructed with a robust ABS work plate and a nylon + GF housing, this stirrer offers excellent chemical resistance. The durable materials ensure longevity and reliability, even in demanding lab environments, while maintaining a lightweight design for easy handling.
  • Risk reduction/compliance benefit: The SCI-PA stirrer features electronic speed control, maintaining constant speed even under varying loads. This minimizes the risk of inconsistent results, ensuring reliable performance and adherence to experimental protocols.
  • Protection level: With an IP42 protection rating, the stirrer is safeguarded against solid objects larger than 1 mm and water droplets. This level of protection ensures the device's longevity and reliability in typical laboratory conditions.
  • Comfort & usability: The easy-to-read LED display and digital speed control enhance the user experience, enabling precise adjustments and monitoring. The compact dimensions (150 x 260 x 80 mm) and lightweight design (1.8 kg) make it easy to integrate into any lab setup.
  • Safety & compliance assurance: The stirrer is cTUVus approved for UL and CSA standards, assuring its safety and compliance with North American electrical safety standards. This certification underscores its reliability and operational safety in laboratory settings.

Recommended For

  • Basic laboratory stirring applications
  • Educational laboratory demonstrations
  • Small-scale research experiments
  • Routine sample mixing
  • Quality control labs
  • Non-corrosive liquid handling

Primary Industries

  • Pharmaceutical research
  • Academic laboratories
  • Chemical analysis
  • Food and beverage testing

Standards and Certifications

  • cTUVus approved for UL and CSA
SHOW MORE

Properties

Work plate dimension 135 mm (5 inch)
Work plate material ABS
Motor type DC Motor
Motor input power 5W
Motor output power 3W
Power 15W
Voltage 100-120, 60Hz
Stirring positions 1
Max. magnetic bar length 50mm
Speed range 100-1500 rpm
Speed display LED
Protection class IP42
Dimensions (WxDxH) 150x260x80 mm
Weight 1.8 kg
Permissible ambient temperature and humidity 5-40°C, 80% RH
Reviews

FAQs

How do I install the SCI-PA Magnetic Stirrer?

Installation is straightforward. Place the stirrer on a stable, level surface. Ensure it's connected to a compatible power source (100-120V, 60Hz). Position the magnetic bar in your container and place it on the work plate. Adjust the speed using the digital controls. Always refer to the user manual for detailed installation instructions.

What maintenance is required for this stirrer?

Regular maintenance includes cleaning the work plate with a soft, damp cloth and ensuring the unit is free from dust and debris. Avoid using harsh chemicals on the ABS surface. Periodically check the power cord and connections for wear. Always unplug the unit before performing any maintenance.

Is this stirrer compatible with all types of containers?

The SCI-PA Magnetic Stirrer is compatible with most non-corrosive containers that fit on its 135 mm work plate. Ensure the container is stable and the magnetic bar is suitable for the container size. Avoid using containers with corrosive substances, as the ABS plate is not resistant to such materials.

Can I order replacement parts for this stirrer?

Yes, replacement parts such as magnetic bars and power cords are available. Contact your supplier or SCILOGEX directly for ordering information. Ensure you have the model number (861521039999) ready when inquiring about parts to ensure compatibility.

What is the warranty coverage for this product?

The SCI-PA Magnetic Stirrer comes with a 2-year warranty, covering defects in materials and workmanship. This warranty does not cover damage caused by misuse, accidents, or unauthorized modifications. For warranty claims, contact the retailer or SCILOGEX with proof of purchase and product details.
