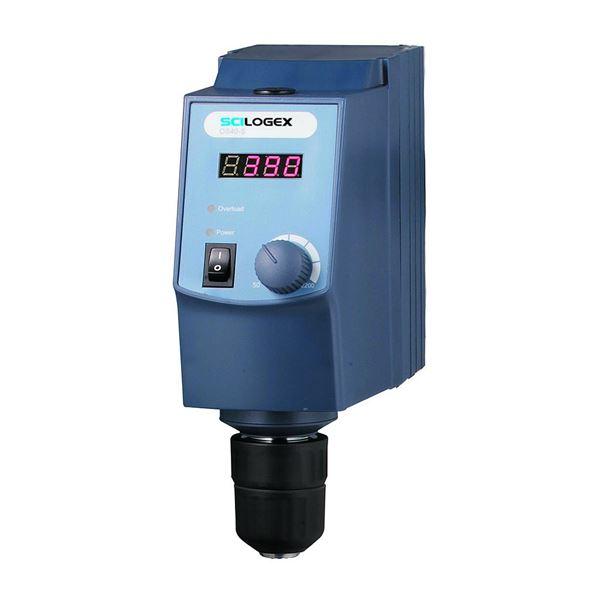

SCI20-S, 20L LED Digital Overhead Stirrer 50-2200rpm - 840102019999

$837.00
Add to wishlist
Add to compare
SKU: S8865-20
California prop 65
Description

Description

  • Key performance benefit: The SCI20-Pro offers a wide speed range of 50 to 2200rpm, allowing precise control over stirring processes. This versatility ensures it can handle a variety of sample viscosities, maintaining constant speed even as conditions change, with a control accuracy of ±3rpm.
  • Material & construction: Constructed with a robust brushless DC motor, the SCI20-Pro is designed for longevity and maintenance-free operation. The through-shaft design facilitates easy adjustment of impeller positions, enhancing operational flexibility and efficiency.
  • Risk reduction/compliance benefit: The anti-spill microprocessor control ensures a slow start-up, significantly reducing the risk of accidental spillage and splashing. This feature is crucial for maintaining a safe and clean laboratory environment, especially during high-speed operations.
  • Protection level: Equipped with over torque protection, the SCI20-Pro automatically halts the motor to prevent damage, safeguarding both the equipment and the samples. The unit is rated with an IP21 protection class, making it suitable for controlled laboratory environments.
  • Comfort & usability: The LCD display provides real-time monitoring of speed and torque, ensuring users have complete control over their processes. The RS232 interface enables seamless PC control and data transmission, enhancing usability, and is supported by free software and comprehensive documentation.
  • Safety & compliance assurance: The SCI20-Pro is cTUVus-approved to UL and CSA standards, ensuring it meets rigorous safety and compliance requirements. This certification provides peace of mind, knowing the equipment adheres to high safety standards.

Recommended For

  • Chemical synthesis processes
  • Pharmaceutical formulation development
  • Petrochemical analysis
  • Physical and chemical laboratory analysis
  • Research and development labs
  • Quality control laboratories

Primary Industries

  • Chemical manufacturing
  • Pharmaceutical production
  • Petrochemical industry
  • Research laboratories
  • Academic institutions

Standards and Certifications

  • cTUVus approved for UL and CSA standards
SHOW MORE

Properties

Maximum stirring capacity 20 Liters
Maximum torque 40Ncm
Viscosity maximum 10000mPas
Speed range 50-2200rpm
Speed display accuracy ±3rpm
Speed display resolution ±1rpm
Chuck diameter range 0.5-10mm
Dimensions 3.3W x 8.7H x 7.3D inches (83W x 220H x 186D mm)
Motor rating input 60W
Motor rating output 50W
Weight 5.5lbs
Motor type Brushless DC motor
Voltage/Power 100-220V, 50/60 Hz/ 70W
Speed/Torque display LCD
Overload protection display LED lights
Protection class IP21
Data connector RS232
Permissible ambient temperature and humidity 5-40°C, 80%RH
Reviews

FAQs

How easy is it to install the SCI20-S overhead stirrer?

Installation of the SCI20-S overhead stirrer is straightforward, thanks to its user-friendly design. The keyless chuck allows quick, easy attachment of stirrer rods without additional tools. The unit is compatible with standard laboratory stands, and a free stand is included with purchase. Simply secure the stirrer to the stand, connect to a power source, and you are ready to begin your stirring applications.

What maintenance is required for the brushless DC motor?

The brushless DC motor in the SCI20-S is for long life and maintenance-free operation. Unlike traditional motors, it does not require regular brush replacements, reducing downtime and maintenance costs. However, it is recommended to periodically check the motor and other components for dust or debris build-up and clean as necessary to ensure optimal performance.

Is the SCI20-S compatible with international power supplies?

Yes, the SCI20-S is designed to be compatible with international power supplies, operating on a multi-voltage range of 110-220V and 50/60Hz. This makes it suitable for use in laboratories worldwide without additional voltage converters or adapters, enhancing its versatility and convenience for global operations.

What is the warranty period for the SCI20-S overhead stirrer?

The SCI20-S overhead stirrer comes with a two-year warranty, providing assurance of its quality and reliability. This warranty covers any defects in materials or workmanship, ensuring that you can rely on the stirrer for consistent performance. In the unlikely event of a malfunction, the warranty offers peace of mind with repair or replacement options.

Are there any accessories included with the purchase of the SCI20-S?

Yes, when you order the SCI20-S overhead stirrer, you receive a free laboratory stand (Part #18900131) with the package. This stand is designed to securely hold the stirrer in place during operation, providing stability and ease of use. Additional accessories, such as stirrer rods, may be purchased separately to suit specific laboratory needs.
