  • SCI40-S, 40L LED Digital Overhead Stirrer 50-2200rpm - 840202019999
Back to products Back to products

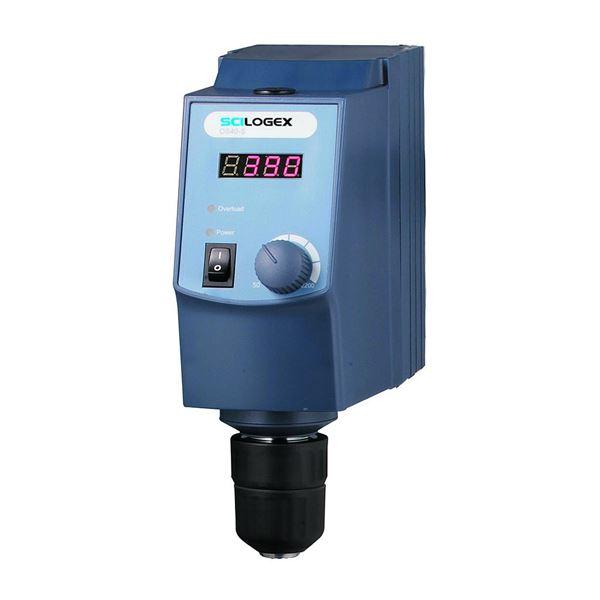

SCI40-S, 40L LED Digital Overhead Stirrer 50-2200rpm - 840202019999

$1,318.00
Add to wishlist
Add to compare
SKU: S8865-40
California prop 65
Description

Description

  • Key performance benefit: The SCI20-Pro offers a wide speed range of 50 to 2200rpm, allowing precise control over stirring processes. This versatility ensures it can handle a variety of sample viscosities, maintaining constant speed even as conditions change, with a control accuracy of ±3rpm.
  • Material & construction: Constructed with a robust brushless DC motor, the SCI20-Pro is designed for longevity and maintenance-free operation. The through-shaft design facilitates easy adjustment of impeller positions, enhancing operational flexibility and efficiency.
  • Risk reduction/compliance benefit: The anti-spill microprocessor control ensures a slow start-up, significantly reducing the risk of accidental spillage and splashing. This feature is crucial for maintaining a safe and clean laboratory environment, especially during high-speed operations.
  • Protection level: Equipped with over torque protection, the SCI20-Pro automatically halts the motor to prevent damage, safeguarding both the equipment and the samples. The unit is rated with an IP21 protection class, making it suitable for controlled laboratory environments.
  • Comfort & usability: The LCD display provides real-time monitoring of speed and torque, ensuring users have complete control over their processes. The RS232 interface enables seamless PC control and data transmission, enhancing usability, and is supported by free software and comprehensive documentation.
  • Safety & compliance assurance: The SCI20-Pro is cTUVus-approved to UL and CSA standards, ensuring it meets rigorous safety and compliance requirements. This certification provides peace of mind, knowing the equipment adheres to high safety standards.

Recommended For

  • Chemical synthesis processes
  • Pharmaceutical formulation development
  • Petrochemical analysis
  • Physical and chemical laboratory analysis
  • Research and development labs
  • Quality control laboratories

Primary Industries

  • Chemical manufacturing
  • Pharmaceutical production
  • Petrochemical industry
  • Research laboratories
  • Academic institutions

Standards and Certifications

  • cTUVus approved for UL and CSA standards
SHOW MORE

Properties

Maximum stirring capacity 20 Liters
Maximum torque 40Ncm
Viscosity maximum 10000mPas
Speed range 50-2200rpm
Speed display accuracy ±3rpm
Speed display resolution ±1rpm
Chuck diameter range 0.5-10mm
Dimensions 3.3W x 8.7H x 7.3D inches (83W x 220H x 186D mm)
Motor rating input 60W
Motor rating output 50W
Weight 5.5lbs
Motor type Brushless DC motor
Voltage/Power 100-220V, 50/60 Hz/ 70W
Speed/Torque display LCD
Overload protection display LED lights
Protection class IP21
Data connector RS232
Permissible ambient temperature and humidity 5-40°C, 80%RH
Reviews

FAQs

What is included with the SCI40-S stirrer upon purchase?

The SCI40-S stirrer comes with a complimentary stand, part number 18900131, enhancing its stability and ease of use. This stand is designed to securely hold the stirrer in place during operation, ensuring optimal performance and safety. Additionally, the package includes a user manual and necessary hardware for quick setup and installation, allowing you to start using the stirrer immediately upon receipt.

How do I maintain the SCI40-S stirrer for optimal performance?

To maintain the SCI40-S stirrer, regularly clean the exterior with a soft, damp cloth to remove dust and residue. Avoid using harsh chemicals that may damage the surface. Ensure that the chuck mechanism is free of obstructions and periodically check the motor for any unusual noises or vibrations. Routine inspections will help ensure the longevity and reliable performance of the stirrer.

Is the SCI40-S compatible with various impeller types?

Yes, the SCI40-S features a through-shaft design that allows easy adjustment of the impeller position. It can accommodate pass-through stirrer rods and various impeller types, making it versatile for a range of stirring applications. The chuck range of 0.5-10mm ensures compatibility with a wide range of impeller sizes.

What is the warranty period for the SCI40-S stirrer?

The SCI40-S stirrer is backed by a 2-year warranty, covering any defects in materials or workmanship under normal use conditions. This warranty provides peace of mind and ensures that any issues encountered during the warranty period will be addressed promptly, either through repair or replacement.

Can the SCI40-S stirrer be used in high-humidity environments?

The SCI40-S is suitable for use in environments with humidity levels up to 80%RH and temperatures ranging from 5-40°C. However, it is important to ensure that the IP42 protection class is not exceeded, as this could compromise the stirrer's performance and safety. Always operate the stirrer within the specified environmental conditions for optimal results.
