  • Transforming Technologies ComfortDOME Anti-Fatigue Mat, 3' x 4', Interlock, End Piece - FM53X4EP
Back to products Back to products

Transforming Technologies ComfortDOME Anti-Fatigue Mat, 3' x 4', Interlock, End Piece - FM53X4EP

$180.41
Add to wishlist
Add to compare
SKU: FM53X4EP
California prop 65
Description

Description

  • Key performance benefit: Provides an anti-fatigue, energizing standing surface while maintaining ESD protection in modular flooring systems.

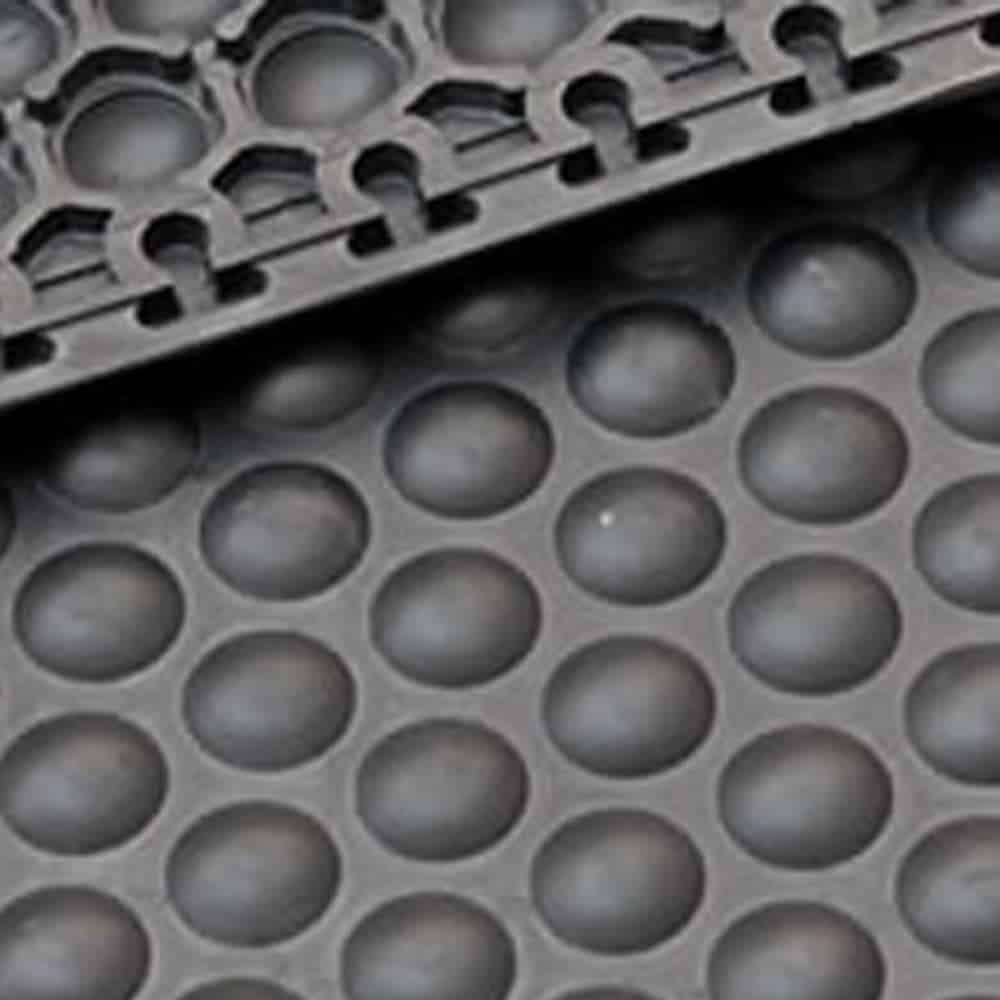

  • Material & construction: Made from 100% conductive rubber with evenly spaced ComfortDOMES that compress under load and rebound rapidly; interlocking end piece design for modular floor runner configurations.
  • Risk reduction/compliance benefit: Drains static charges efficiently and provides a path-to-ground for workers wearing ESD footwear.
  • Protection level: Surface resistance (RTT) of 1.0 x 10³ to 1.0 x 10⁵ ohms; compliant with ANSI/ESD S20.20 requirements.
  • Comfort & usability: ComfortDOMES structure softens under pressure and rebounds instantly, reducing fatigue during prolonged standing; end piece completes modular runner layouts.
  • Safety & compliance assurance: Meets or exceeds ANSI/ESD S20.20 per ANSI/ESD STM7.1.

Recommended For

  • Assembly lines requiring extended floor runners
  • ESD-controlled workstations
  • Electronics manufacturing areas
  • Inspection and quality control stations
  • Semiconductor production environments
  • Work areas requiring modular anti-fatigue flooring

Primary Industries

  • Electronics manufacturing
  • Semiconductor
  • Aerospace
  • Medical device manufacturing

Standards and Certifications

  • ANSI/ESD S20.20
  • ANSI/ESD STM7.1
SHOW MORE

Properties

Length 3 ft x 4 ft (914 mm x 1219 mm)
Material 100% conductive rubber
Coating / Finish ComfortDOME surface structure
Color Not specified
Thickness 1/2" (12.7 mm)
Surface Resistance (RTT) 1.0 x 10³ – 1.0 x 10⁵ ohms
Configuration Interlocking end piece
Reviews

FAQs

When should I use the interlocking end section instead of a center piece?

The interlocking end section is used to complete the edges of a modular floor runner system. While center pieces extend the length, end sections provide a finished boundary, improving stability and safety. They are essential when building continuous mat layouts to ensure a clean, secure, and professional installation.

Can this end section be used as a standalone mat?

Although it can function on its own in smaller areas, it is primarily designed to work as part of a modular system. Using it independently may not provide the same layout efficiency or coverage as a full runner. It is best suited for completing or extending interlocking mat configurations.

How does the modular design improve workspace flexibility?

The interlocking system allows users to expand or reconfigure floor coverage as needed. This is especially useful in dynamic environments like assembly lines, where layouts may change. It enables scalable ergonomic and ESD protection without replacing entire flooring setups, saving time and improving operational adaptability.

What should I consider when installing this mat section?

Ensure the mat is properly aligned and securely connected to adjacent sections to prevent gaps or movement. Placement should support the operator’s working range to maintain comfort and a sense of grounding. Depending on the flooring system, grounding verification may be required to ensure consistent ESD performance.

How can I maintain consistent performance over time?

Keep the surface clean using ESD-safe cleaning methods to prevent contamination that could affect conductivity. Regularly inspect interlocking edges for separation or wear. Periodic resistance testing is recommended to confirm that the mat continues to perform within expected ESD ranges and remains reliable for long-term use.
