Transforming Technologies Spartan TWO. Constant Monitor for use with 1 wrist strap and mat - CM310

$141.79
Add to wishlist
Add to compare
SKU: CM310
California prop 65
Description

Description

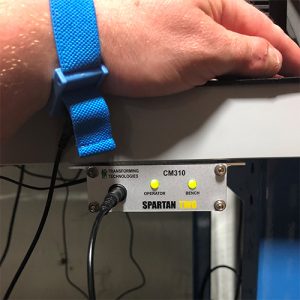

  • Key performance benefit: Continuously monitors one wrist strap and one worksurface to maintain grounding integrity and detect failures immediately.
  • Material & construction: Single wire monitoring system with fixed resistor design, enclosed in a durable metal case with built-in mounting brackets for under-table installation.
  • Risk reduction/compliance benefit: Eliminates manual wrist-strap testing and detects grounding failures in real time, reducing the risk of ESD damage to sensitive components.
  • Protection level: Audible and visual alarms activate when the wrist strap or worksurface ground connection fails.
  • Comfort & usability: Plug-and-use operation with no adjustments required; supports continuous monitoring without workflow interruption.
  • Safety & compliance assurance: Meets or exceeds ANSI ESD S20.20 recommendations.

Recommended For

  • Electronics assembly
  • Semiconductor manufacturing
  • ESD-sensitive workstations
  • Component handling
  • Testing environments
  • Static-controlled production areas

Primary Industries

  • Electronics Manufacturing
  • Semiconductor
  • Industrial Manufacturing

Standards and Certifications

  • ANSI ESD S20.20 compliant
SHOW MORE

Properties

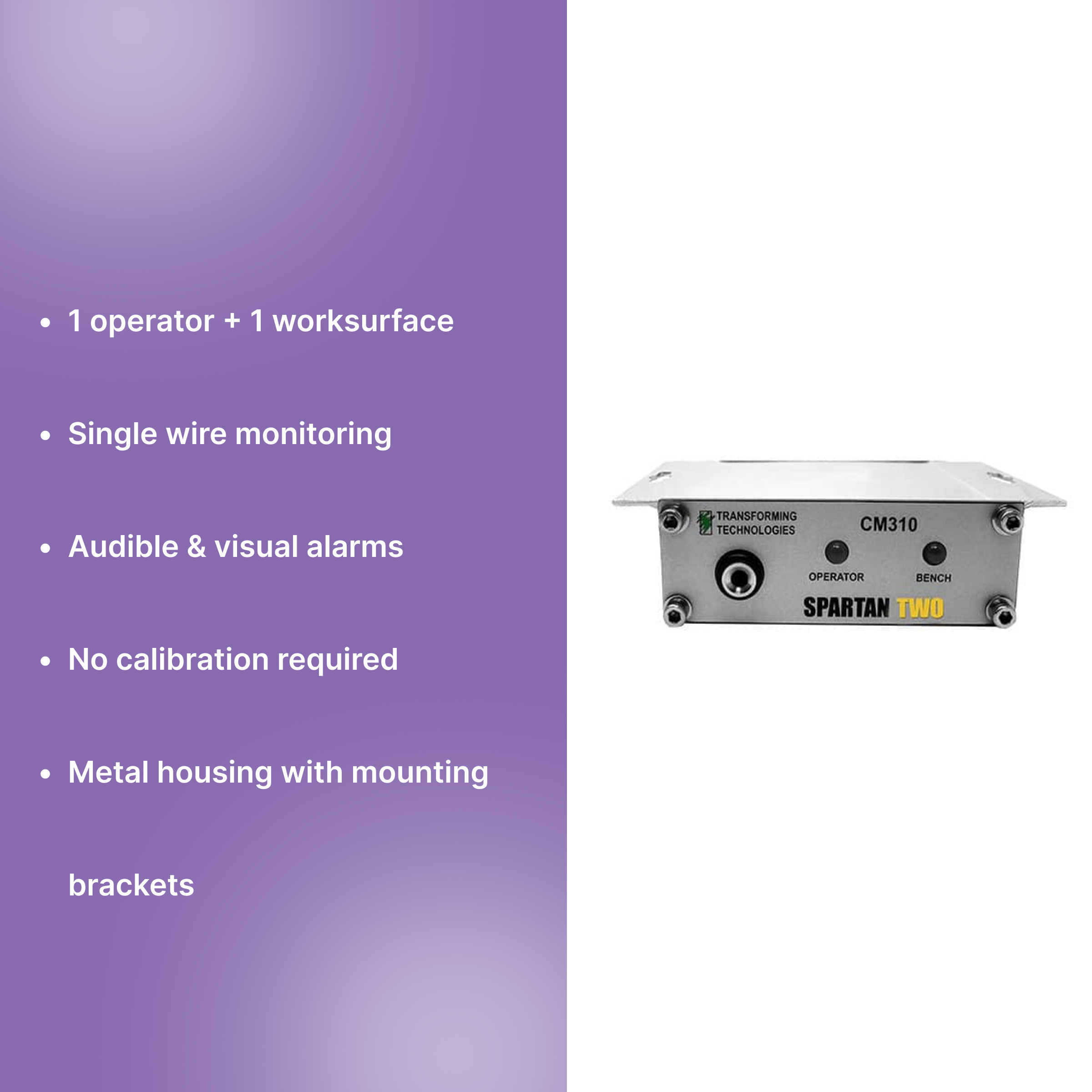

Model CM310 Spartan Two
Monitoring Capacity 1 wrist strap, 1 worksurface
Wire Type Single wire
Alarm Type Audible and visual
System Type Fixed resistor (no calibration required)
Housing Metal case
Mounting Built-in brackets
Reviews

FAQs

When is this monitor a better choice than wrist-strap-only systems?

This monitor is a better fit when both operator grounding and worksurface integrity need to be verified together. It provides an added layer of control compared to wrist-strap-only systems, helping to ensure that both the user and the workspace remain properly grounded during sensitive handling tasks.

How does single-wire monitoring affect overall ESD protection?

Single-wire monitoring provides continuous verification of the grounding path but does not offer redundancy like dual-wire systems. It is suitable for controlled environments with additional safeguards, but may not be ideal for highly sensitive applications that require maximum fault-detection assurance.

Is this system easy to install in existing workstations?

Yes, the unit is designed for straightforward installation with built-in mounting brackets that allow secure placement under or alongside a workbench. Its plug-and-play functionality means it can be integrated quickly into existing setups without calibration or specialized configuration.

What are the limitations of this monitoring setup?

While it monitors both the operator and worksurface, it relies on a single conductor path, which may not detect all possible failure modes. For environments with strict redundancy requirements or higher risk profiles, more advanced monitoring systems may be necessary to achieve full coverage.

What best practices ensure consistent monitoring performance?

Ensure that all connections to the wrist strap and worksurface are secure and regularly inspected for wear or damage. Keep mounting stable to prevent accidental disconnections. Periodic checks of alarm functionality and adherence to ESD handling procedures help ensure reliable, effective long-term performance.
