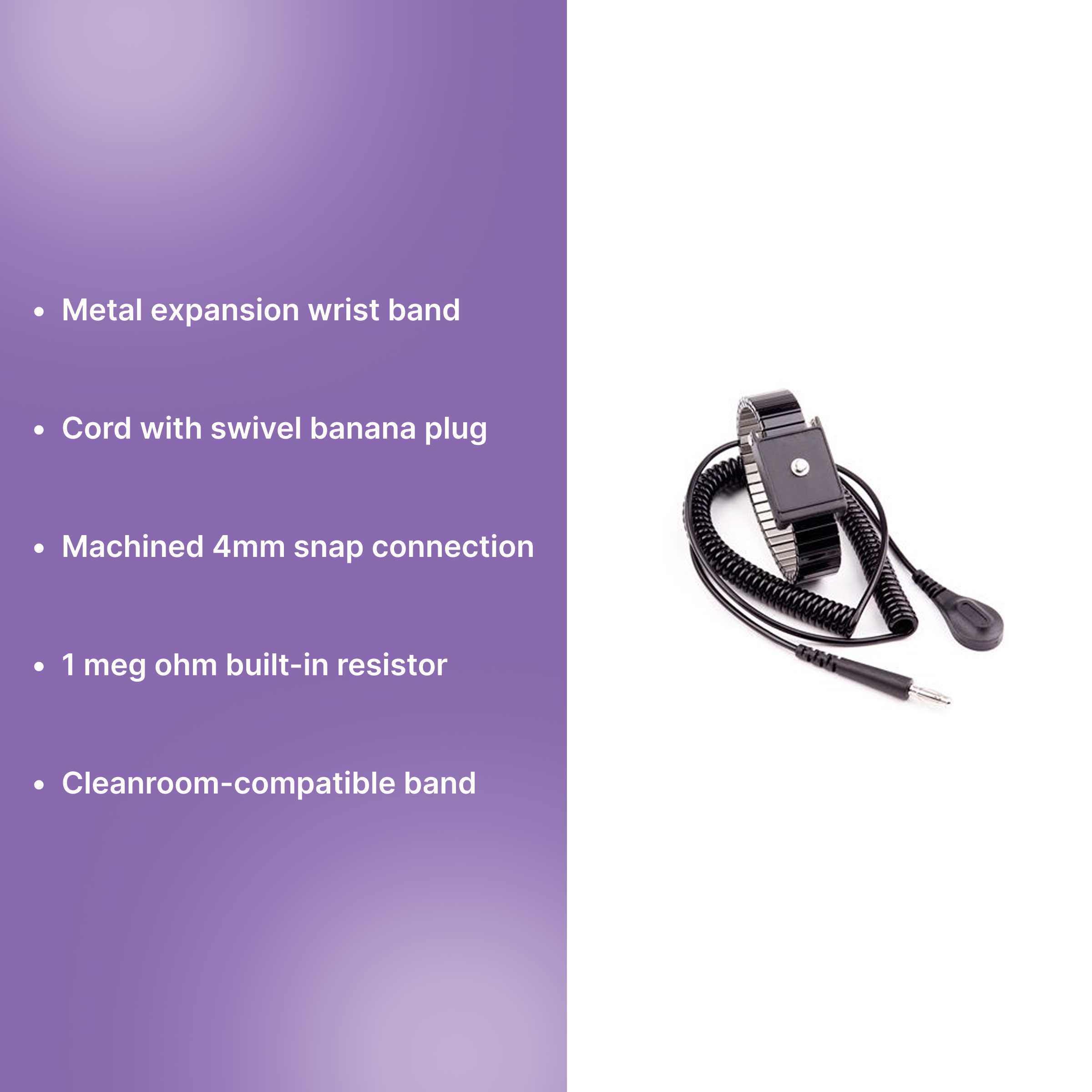

Transforming Technologies Wrist Strap Set, Premium Cc, 12', 4mm Machined Post - WB6043

$23.10
Add to wishlist
Add to compare
SKU: WB6043
California prop 65
Description

Description

  • Key performance benefit: Provides continuous ESD grounding for personnel through a metal wristband system designed for consistent electrical contact.
  • Material & construction: Adjustable metal expansion band with a stainless steel inner surface and an insulating outer surface; premium coil cord with 2.5mm polyurethane insulation and a swivel banana plug termination.
  • Risk reduction/compliance benefit: Maintains continuous grounding to reduce static buildup and minimize the risk of ESD damage in controlled and cleanroom environments.
  • Protection level: 1-megohm resistor integrated into the system; maximum resistance of 160 ohms for conductive elements.
  • Comfort & usability: One-size-fits-all expansion band design provides adjustable fit with full 360° wrist contact; swivel banana plug reduces cord tangling during use.
  • Safety & compliance assurance: Meets or exceeds ANSI ESD-S20.20 and ESDA Standard 1.1-2006.

Recommended For

  • Cleanroom environments
  • Electronics assembly and repair
  • Static-sensitive component handling
  • Quality control and inspection areas
  • Workstations requiring continuous grounding
  • Semiconductor manufacturing

Primary Industries

  • Electronics manufacturing
  • Semiconductor
  • Aerospace
  • Medical device manufacturing

Standards and Certifications

  • ANSI ESD-S20.20
  • ESDA Standard 1.1-2006
SHOW MORE

Properties

Length 12 ft coil cord
Material Metal expansion band (stainless steel inner surface, insulating outer surface), polyurethane insulated coil cord
Coating / Finish Insulating outer surface on band
Color Not specified
Fit / Size Range One size fits all (adjustable expansion band)
Snap Size 4mm machined male snap
Termination Swivel-type banana plug (straight or right angle)
Resistor 1 meg ohm
Cord Type Single wire coil cord
Reviews

FAQs

When is a metal wrist strap a better choice than other grounding options?

A metal wrist strap is preferred in environments where consistent conductivity is critical, such as precision electronics or cleanrooms. The expansion design ensures full wrist contact at all times, making it more reliable than alternatives that may shift or loosen during use, especially during repetitive or detailed tasks.

Is the 12-foot cord length practical for everyday use?

A 12-foot cord is ideal for larger workstations or setups where equipment is spread out. It allows greater freedom of movement without disconnecting from the ground. However, in smaller spaces, users may need to manage excess cord length to prevent interference or accidental snagging during work.

How does the metal expansion band affect comfort during long shifts?

The expansion band automatically adjusts to the wrist, providing a secure and consistent fit. While it ensures strong electrical contact, users may need to fine-tune positioning for comfort during extended wear. It is well-suited for users who prioritize reliability but still need reasonable comfort throughout the workday.

Can this wrist strap be used across different industries and environments?

Yes, it is suitable for a wide range of industries handling static-sensitive components, including electronics, aerospace, and medical device manufacturing. Its design supports both standard controlled environments and cleanroom settings, making it a versatile grounding solution for a range of professional applications.

What are the important usage considerations to ensure proper grounding?

For effective performance, the wrist strap must maintain direct contact with the skin and be properly connected to a grounded system. Users should routinely verify the connection and inspect components for wear. Improper use, such as loose fit or disconnected cords, can reduce effectiveness and compromise static control.
